Jeep Grand Cherokee ZJ tidig modell

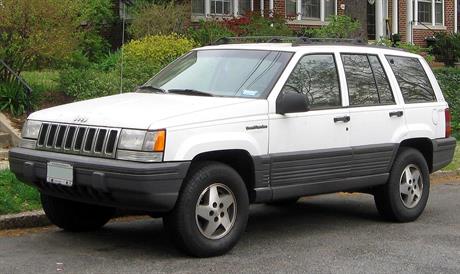

Jeep Grand Cherokee ZJ 1993-1998

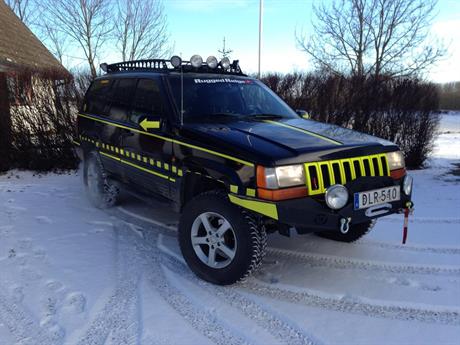

En ombyggd Cherokee ZJ 1993 (ägare Lars Claesson)

Motor alternativ.
2,5L Turbo diesel 4-cyl
4,0L 6-cyl                               Väger 1,621 kg
5,2L 318 V8                                  Väger 1,769 kg
5,9L 360 V8 fanns endast 1998

Växellådor.
4-växlad Aisin AW-4 automatlåda
5-växlad Aisin AX-15 manuell

Automat Växellådor
- AW30-40 4-speed automatic (early 1993) Samma som XJ med 4.0
- 42RE 4 speed automatic (I-6: 1993-1998)
- 46RH 4 speed automatic (v-8: 1993-1995)
- 44re 4 speed automatic (5.2L v-8: 1996-1998)
- 46RE 4 speed automatic (5.9L v-8: 1998)

Axlar.
Fram Dana 30
Bak Dana 35 eller Dana 44

Olje volym:     Motor
4,0L    1993-98   5,7L            TO 213669  Total Rubia Tir 7400 15w-40 (Mineralolja)
5,2L    1993-98   4,7L            TO 213818 Total Quartz Ineo Long Life 5w-30
5,9L     1998       4,7L             TO 213764 Total Quartz 9000 5w-40


2,5TD  1993-98   6,5L           TO 213764 Total Quartz 9000 5w-40

Rekommendationer

  • Intervall för oljebyte, Körvillkor: Normala förhållanden: 96000 Km, 48 Månader
  • Intervall för oljebyte, Körvillkor: Svåra förhållanden: 96000 Km



Automat växellåda
8-10,4L första byte sen 3,8L              TO 213821 Total  Fluide XLD FE

Fördelnings växellåda
  1,2L                                              TO 213821 Total Fluide XLD FE

Framaxel D30
1,5L                                              TO 214002 Total Dynatrans DA 80W/90 LS axelolja

Bakaxel D35
1,6L                                              TO 214002 Total Dynatrans DA 80W/90 LS axelolja
Bakaxel D44
2,3L                                              TO 214002 Total Dynatrans DA 80W/90 LS axelolja

Bromsvätska                                Broms/koppl.vätska ATE SL dot4 1L  art nr: 706402

Hjul:
Bultcirkel     5/114,3 (5/4,5)
Navhål           71,5mm
Bult                1/2"

Du får fram den korrekta årsmodellen på Cherokee genom att läsa av VIN koden (Vehicle Identification Number) som är präglad på en skylt. Denna sitter på ovansidan av instrumentbrädan framför ratten och är avläsbar utifrån. Det är det 10:de tecknet som gäller. H=1987. J=1988. K=1989. L=1990. M=1991. N=1992. P=1993. R=1994. S=1995. T=1996. V=1997. W=1998. X=1999. Y=2000. 1=2001. 2=2002. 3=2003. 4=2004. 5=2005. 6=2006. 7=2007. 8=2008. 9=2009.

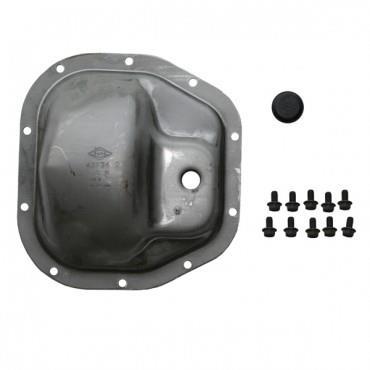

Diffkåpa Dana 44 med aluminiumhus

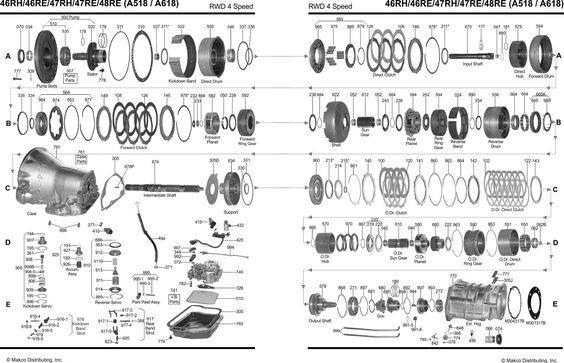

Automatic 46RE

46RE

1993 - 1998 JEEP GRAND CHEROKEE ZJ VIN DECODER/VEHICLE IDENTIFICATION NUMBER (VIN)


The Jeep Grand Cherokee Vehicle Identification Number (VIN) plate is attached to the top left side of the instrument panel.
The Vehicle Identification Number is also imprinted on the:

  • Body Code Plate
  • Equipment Identification Plate
  • Vehicle Safety Certification Label
  • Frame Rail

Be sure to see our products for the Jeep Grand Cherokee ZJ, too.

Here's how to decode the Vehicle Identification Number (VIN) of your 1993-1998 Jeep Grand Cherokee ZJ:

1st Digit: Identifies which country the vehicle was made for:

1= United States

2nd Digit: Identifies who made the vehicle:

J= Jeep

3rd Digit: Identifies which type of vehicle the vehicle is:

4= Multipurpose Vehicle (MPV)

4th Digit: Identifies the Gross Vehicle Weight Rating (GVWR) of the vehicle:

G= 5,001-6,000 Gross Vehicle Weight Rating (GVWR)

5th Digit: Identifies the series of the vehicle:

X= Grand Cherokee ZJ 4X2 (Two-Wheel-Drive) (Left-Hand Drive)
Z= Grand Cherokee ZJ 4X4 (Four-Wheel-Drive) (Left-Hand Drive)

6th Digit: Identifies the specific model/trim of the vehicle:

4= Special Edition Laredo
5= Laredo or TSi Laredo
7= Limited or Orvis Edition Laredo
8= Base or SE
C= Limited (5.9L V8)

7th Digit: Identifies the body style of the vehicle:

8= 4-Door Sport Utility Vehicle (SUV)

8th Digit: Identifies which type of engine the vehicle has:

S= 4.0 Liter (4.0L) Multi-Port Fuel Injection (MPFI) High-Ouput (HO) V8 "Power-Tech" (185 or 190 Horsepower, 220 Lb. Ft. of Torque) (242 Cubic Inch Diameter)
Y= 5.2 Liter (5.2L) Multi-Port Fuel Injection (MPFI) High-Output (HO) V8 "Magnum" (220 Horsepower, 275 Lb. Ft. of Torque) (318 Cubic Inch Diameter)
Z= 5.9 Liter (5.9L) Multi-Port Fuel Injection (MPFI) High-Output (HO) V8 "Magnum" (250 Horsepower, 300 Lb. Ft. of Torque) (366 Cubic Inch Diameter)

9th Digit: Identifies that the vehicle's Vehicle Identification Number (VIN) is correct up to this point:

Check Digit (Any Number)

10th Digit: Identifies the year of the vehicle:

P= 1993 Model Year (M.Y.) Vehicle
R= 1994 Model Year (M.Y.) Vehicle
S= 1995 Model Year (M.Y.) Vehicle
T= 1996 Model Year (M.Y.) Vehicle
U= 1997 Model Year (M.Y.) Vehicle
V= 1998 Model Year (M.Y.) Vehicle

11th Digit: Identifies at which plant the vehicle was made:

C= Assembled at Jefferson North Assembly Plant (JNAP), North Jefferson Avenue (Ave.), Detroit, Michigan (MI)

12th-17th Digits: This number is assigned as the vehicle is being produced:

XXXXXX (Replace XXXXXX with Last 6 Digits of Vehicle Identification Number)= Vehicle Production Number (VPN)
